CONTEMPORARY ALUMINUM SLEEK
Contemporary Aluminum Sleek garage doors are the perfect choice to modernize any home. Not only can they transform garages, they can also be used as an indoor loft partition or as versatile solarium doors.
■ DURABLE CONSTRUCTION
Reinforcing Fin*, Glass/Panel Option, Heavy-Duty Aluminum Frame

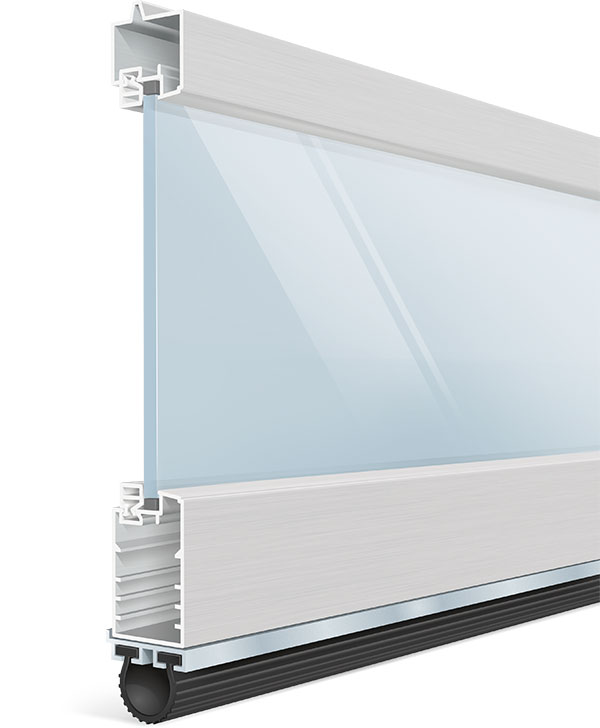

AZ5/AZ6
Non-Insulated

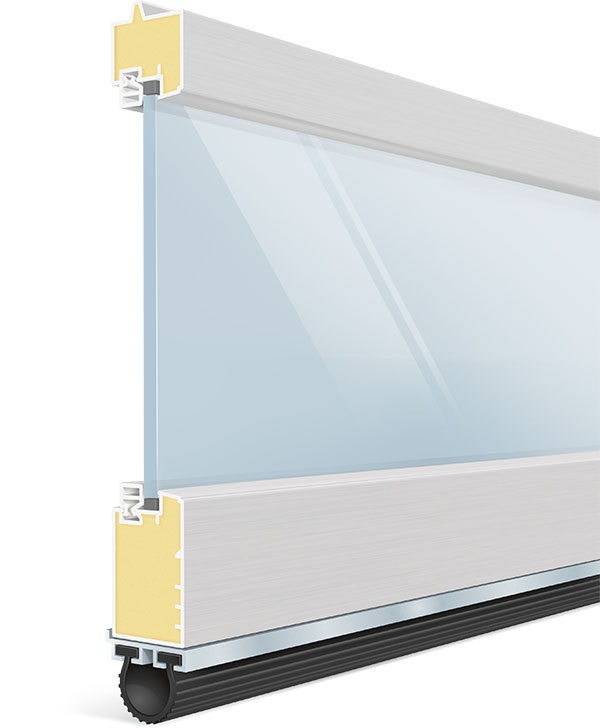

AZ5U/AZ6U
Insulated
Durable, low-maintenance 2-1/8″ commercial grade aluminum frame with many glazing options.
Intellicore® polyurethane insulated rails and stiles (Models AZ5U and AZ6U).
Tempered full-view glass, acrylic or solid aluminum panel options. Insulated glass garage door panels are available for increased energy efficiency.
WindCode® product available.
Integral section joint seal for further reduction of air and water infiltration.
Smooth flat frame edge design for a more contemporary look.
*Reinforcing fin included on doors wider than 14’. Standard doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WindCode® doors may vary.
■ MODELS
Non-Insulated and Insulated
AZ5/AZ5U/AZ6/AZ6U

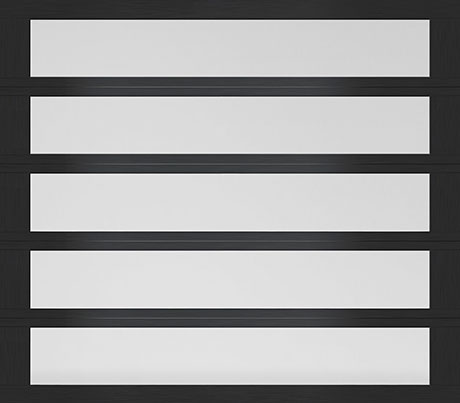

(Single car door)
Non-Insulated and Insulated
AZ5/AZ5U/AZ6/AZ6U

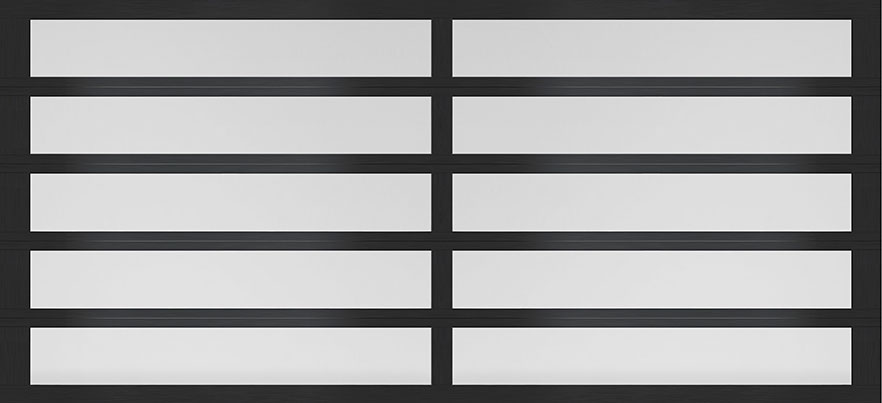

(Double car door)
■ FRAME/SOLID PANEL COLOR OPTIONS
Frame and solid aluminum panels available in choice of anodized and powder-coated finishes.
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Chocolate (Painted)
Bronze* (Anodized)
Black* (Anodized)
Dark Bronze* (Anodized)
*Colors available at an additional cost.
Due to the anodizing process, slight color variation may occur. The use of “Bronze (Painted)” is recommended for a more consistent bronze finish color. Powder coated custom colors available upon request; contact customer service for pricing.
Please Note: Actual colors may vary from sample photos. For more information, view our color disclaimer.
■ GLASS/PANEL OPTIONS
MODELS AZ5, AZ5U
Clear Acrylic
Gray Acrylic
Bronze Acrylic
White Acrylic
Black Acrylic
Frosted Acrylic
Clear Anodized
(Color-matched to frame)
MODELS AZ6, AZ6U
Clear Glass*
Gray Tinted Glass*
Bronze Tinted Glass*
Mirrored Glass*
Obscure Glass*
Frosted Glass*
(Satin Etched)
Clear Anodized
(Color-matched to frame)
*Glass is tempered.
Glass available in single pane or insulated. Mirrored glass not available insulated. Panels can be aluminum to match the aluminum frame. Glass/acrylic panels may be combined with aluminum panels. Custom glass and colors available.
Acrylic windows require special cleaning. Never use products that contain ammonia or petroleum products to clean acrylic. View details.
■ DECORATIVE HARDWARE
Color-matched aluminum grip handle.
COLOR-MATCHED HARDWARE
■ Aluminum Grip Handles (Included)
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Chocolate (Painted)
Bronze* (Anodized)
Black* (Anodized)
Dark Bronze* (Anodized)
■ = Aluminum Construction
*Colors available at an additional cost.
