SETTLERS®

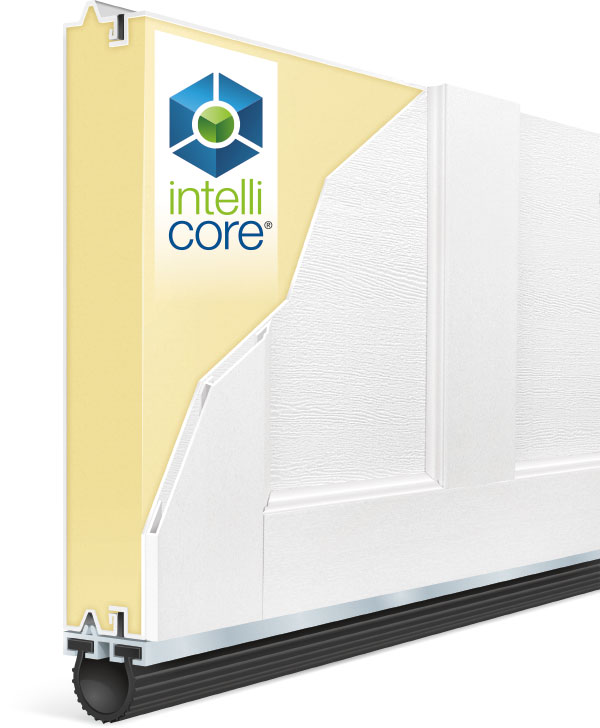

Settlers® garage doors offer carriage house design with the look of wood and the insulation and durability benefits of steel. This four-layer construction offers insulation, including our high R-value Intellicore® polyurethane or polystyrene, sandwiched between steel and topped with a woodgrain texture composite overlay.

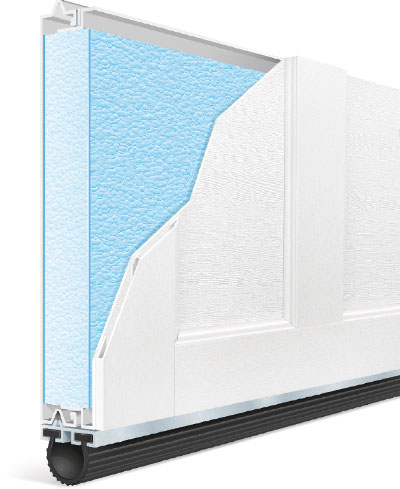

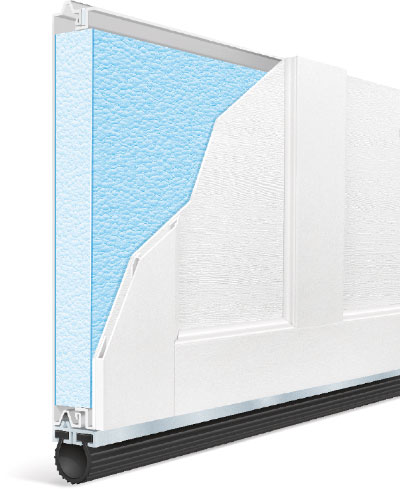

■ FOUR-LAYER CONSTRUCTION
Steel, Insulation, Steel, Overlay
SX

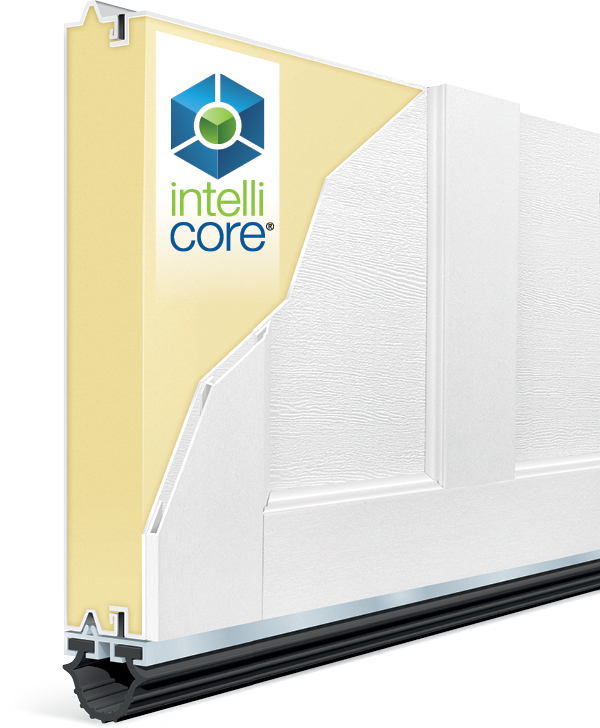

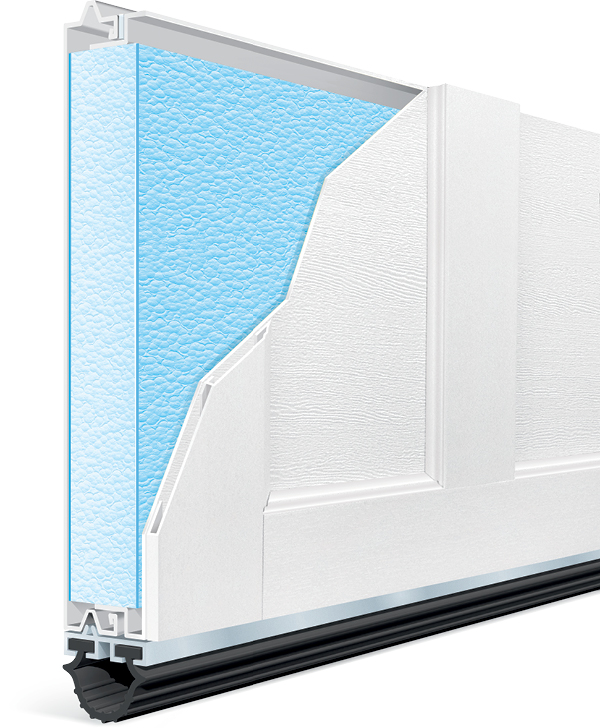

2″ Polystyrene Insulation
9.0 R-Value
SF

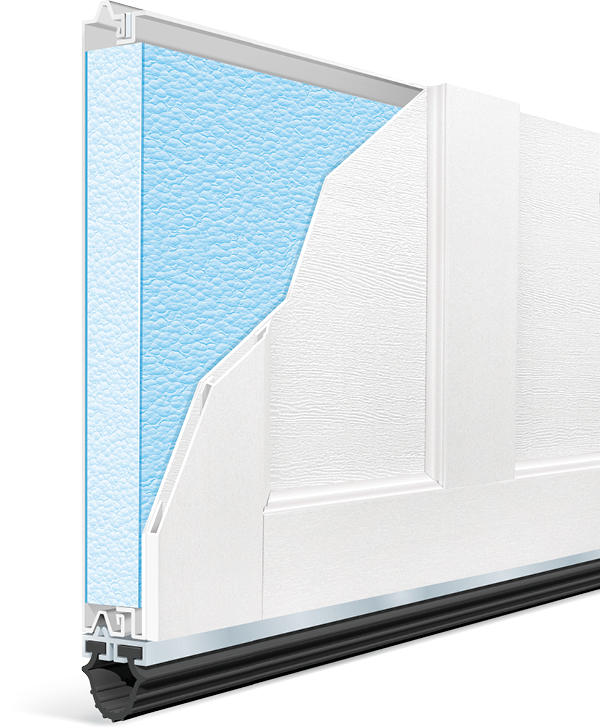

1-3/8″ Polystyrene Insulation
6.5 R-Value
EZ-Set® torsion springs standard on most sizes.
Base door has a natural woodgrain texture, painted with a baked-on primer and polyester top coat.
Detailed beveled, coped-edge overlay.
Includes automatic opener reinforcement.
■ DOOR DESIGNS

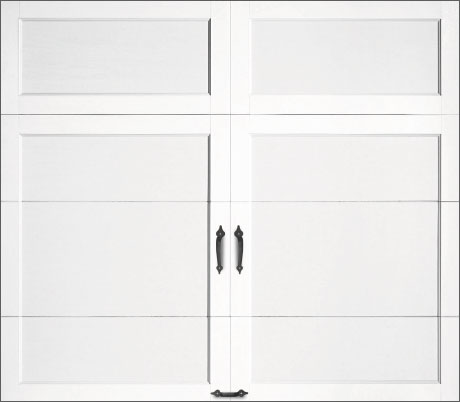

Design 11

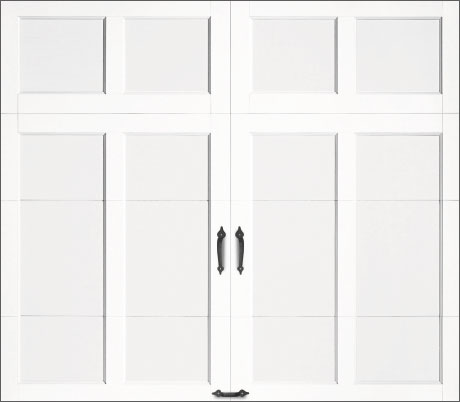

Design 12

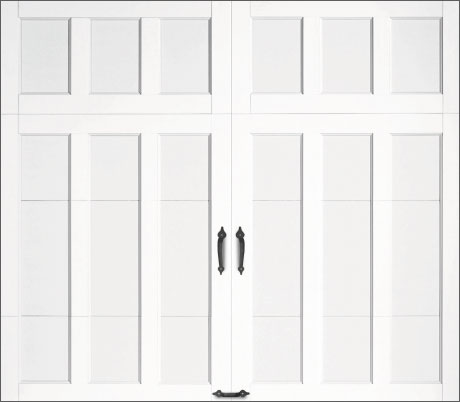

Design 13

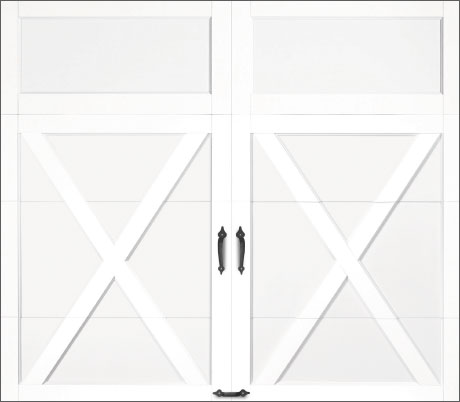

Design 21

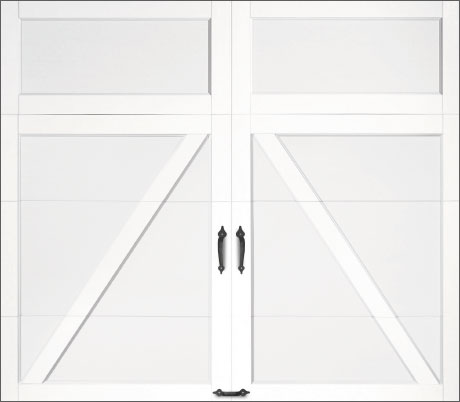

Design 22

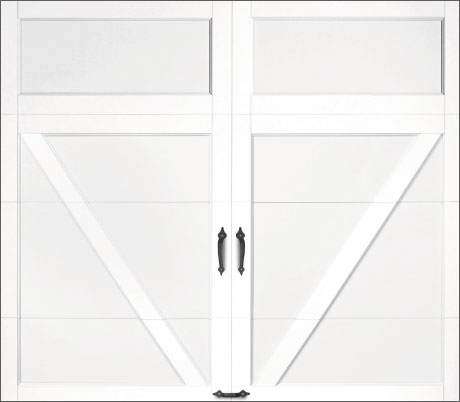

Design 23

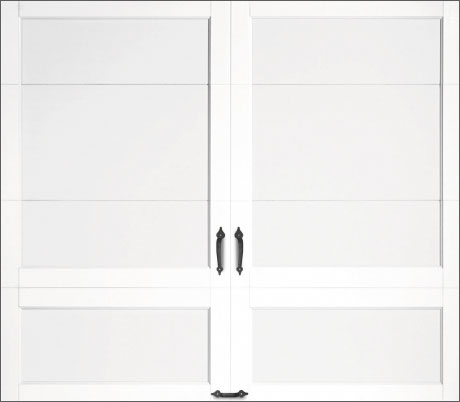

Design 31

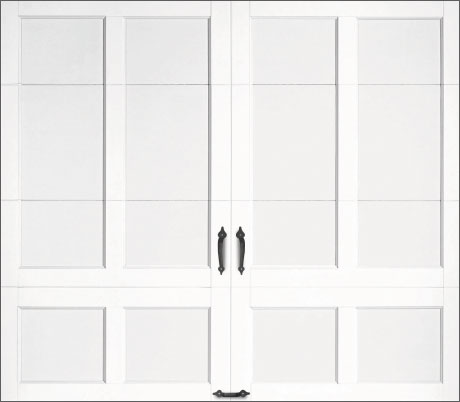

Design 32

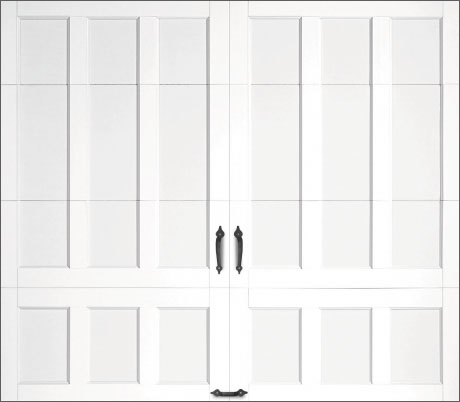

Design 33

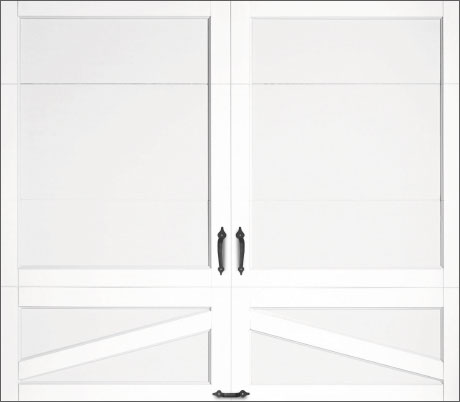

Design 34

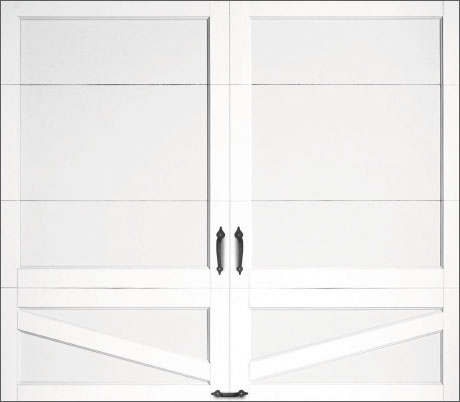

Design 35

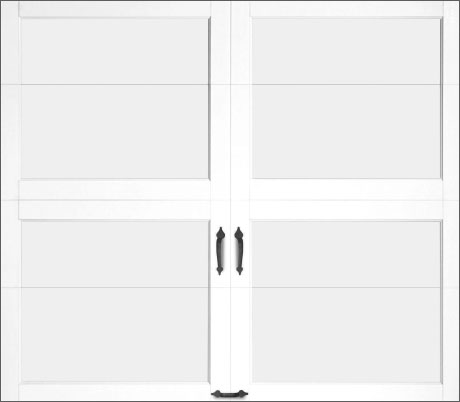

Design 36

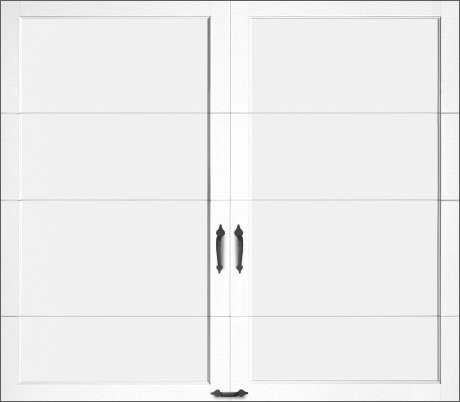

Design 41

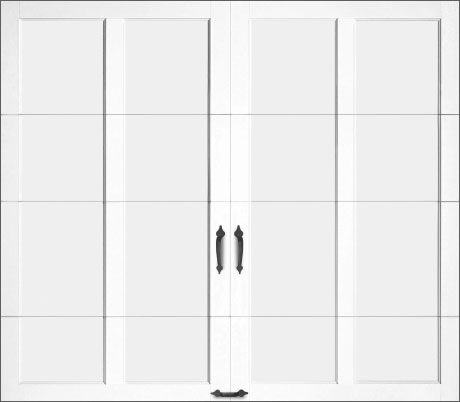

Design 42
Design 43
Single door widths shown.
■ BASE DOOR/OVERLAY COLOR OPTIONS
Standard White
Almond
Desert Tan
Sandtone
Door and overlay colors can be mixed and matched.
For doors being painted black and very dark colors (having an LRV of 12 or less) contact Holmes for special product. For colors having an LRV of 13 to 38 we require the use of tested and approved paints. For more information call our Consumer Services Hotline at 1-800-557-0488.
Please Note: Actual colors may vary from sample photos. For more information, view our color disclaimer.
■ WINDOWS/TOP SECTION OPTIONS
Windows with complete overlay and true arch designs are available in double strength, frosted, seeded, obscure, rain and insulated glass. Grilles are removable for ease of cleaning.

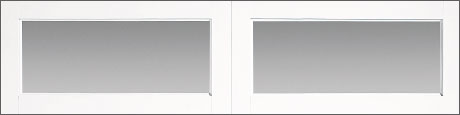

REC11

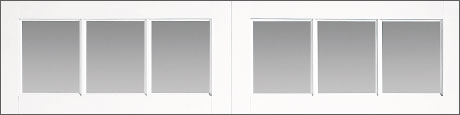

REC13

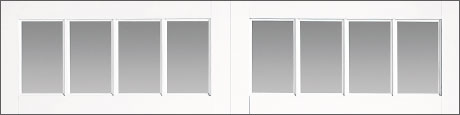

REC14

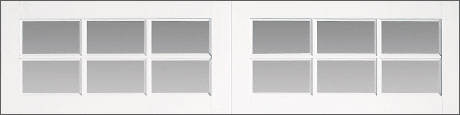

SQ23

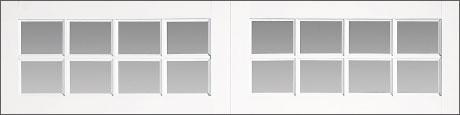

SQ24

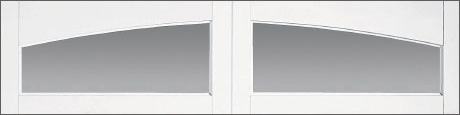

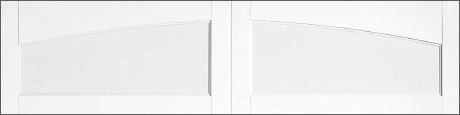

ARCH1

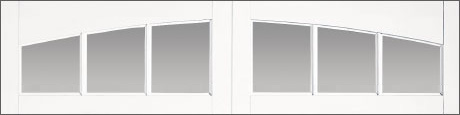

ARCH13

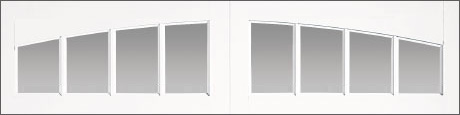

ARCH14

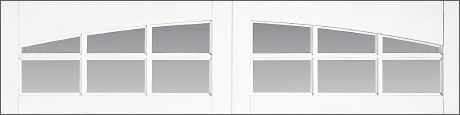

ARCH3

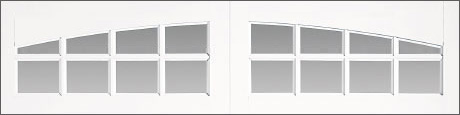

ARCH4

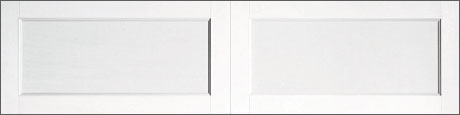

TOP11

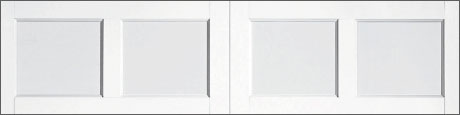

TOP12

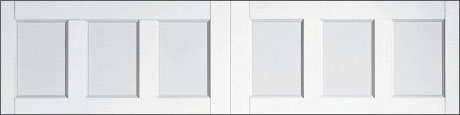

TOP13
ARCH1
Series 3 and Series 4 are not available with windows.
Double door designs available.
■ SPECIALTY GLASS OPTIONS
Glass is available in different designs depending on door model. Options include acrylic, clear, frosted, seeded, obscure and rain, as well as insulated versions for a more energy efficient door.
Clear
Frosted
Seeded
Obscure
Rain
Additional charges for optional glass apply.
■ DECORATIVE HARDWARE
Attractive black powder coated handles and step plates are provided standard on garage doors to further enhance the design of the door. Optional decorative hardware, including handles, operable L-keylocks and strap hinges, is also available.
SPADE HARDWARE COLLECTION
SPEAR HARDWARE COLLECTION
■ Spade Lift Handles (Included)
■ Spade Step Plate (Included)
■ Spade Strap Hinge* (Optional)
■ = Steel Construction ■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
SPEAR HARDWARE COLLECTION
■ Spear Lift Handles (Optional)
■ Spear Step Plate (Optional)
■ Spear Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
COLONIAL HARDWARE COLLECTION
■ Colonial Lift Handles (Optional)
■ Colonial Step Plate (Optional)
■ Colonial Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
MISCELLANEOUS HARDWARE
■ Twisted “L” Handles (Optional)
■ Escutcheon Plate(s) (Optional)
■ Decorative Handles with Keyhole (Optional)
■ Ring Door Knocker (Optional)
■ = Cast Iron Construction
■ = Steel Construction ■ = Aluminum Construction ■ = Cast Iron Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
