WESTPORT™ STEEL INLAYS
Westport™ Steel Inlay doors achieve a perfectly balanced look, blending classic Shaker design with modern, understated elegance.

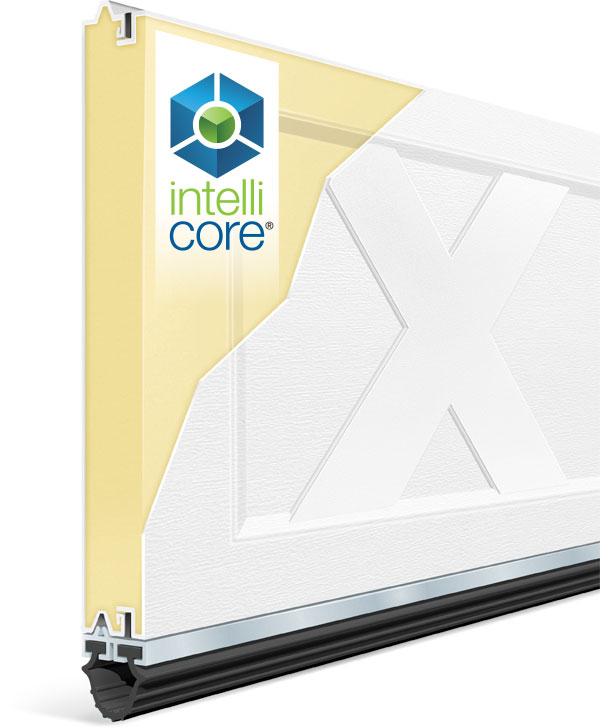

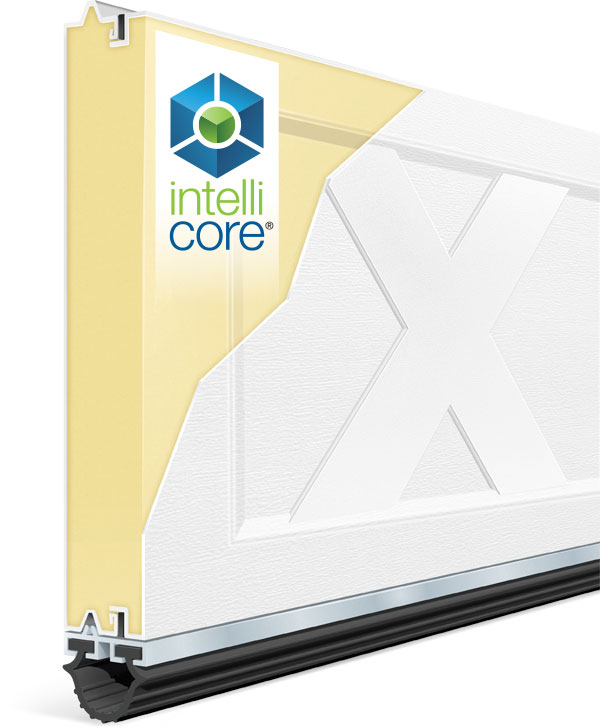

■ THREE, TWO & ONE-LAYER CONSTRUCTION
Steel, Insulation, Steel
24 Gauge: PR4CV
25 Gauge: PR5CV

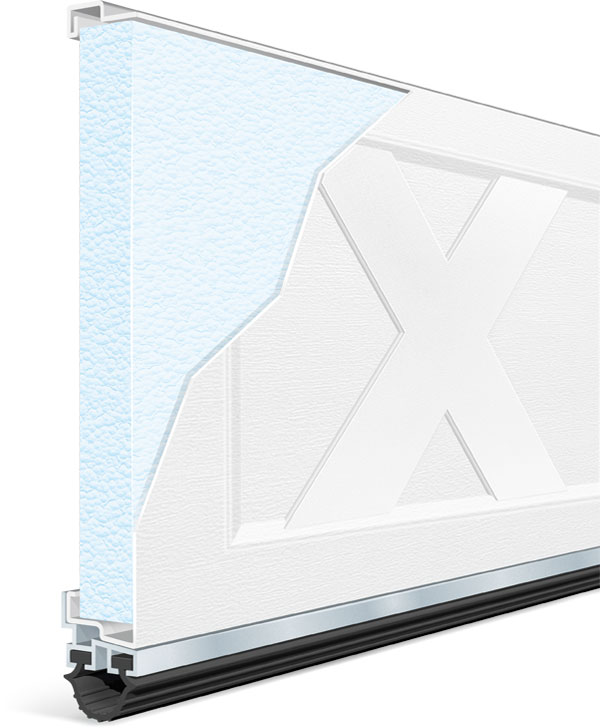

1-5/16″ Vinyl-Backed Polystyrene Insulation
6.3 R-Value
24 Gauge: PR4C
25 Gauge: PR5C

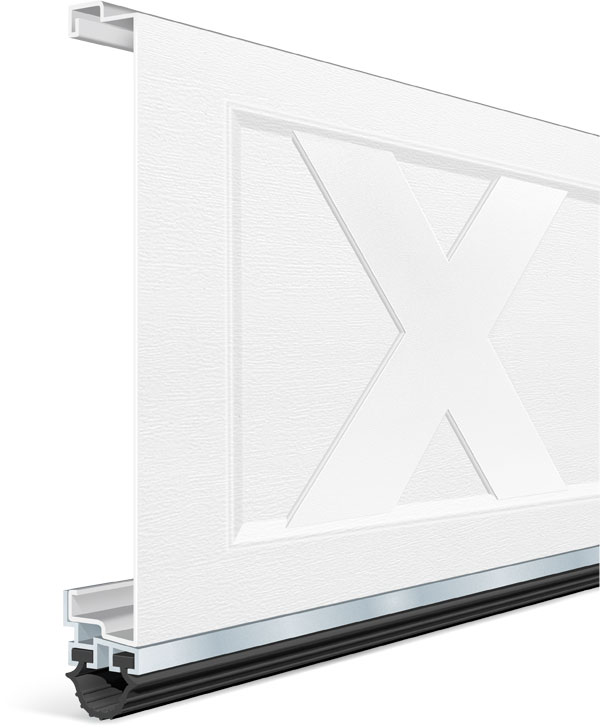

Steel (Non-Insulated)
The steel skins are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
WindCode® reinforcement product available for high wind load applications.
■ DOOR DESIGNS
Recessed-panel steel designs available in extended-panel with Design A, V or X options.
Single door width shown below.
Design A
Three-Layer
PR2CU/PR1CU
Two-Layer
PR4CV/PR5CV
One-Layer
PR4C/PR5C

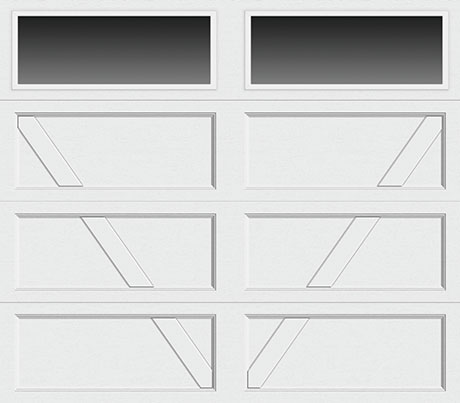

Design V
Three-Layer
PR2CU/PR1CU
Two-Layer
PR4CV/PR5CV
One-Layer
PR4C/PR5C

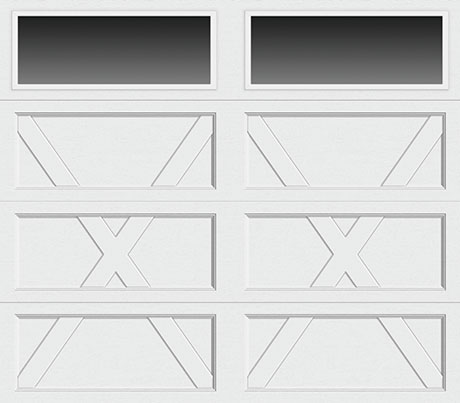

Design X
Three-Layer
PR2CU/PR1CU
Two-Layer
PR4CV/PR5CV
One-Layer
PR4C/PR5C
■ COLOR OPTIONS
Ten beautiful standard paint colors available along with four warm Ultra-Grain® wood-look finishes.
Standard White
Almond
Desert Tan
Sandtone
Bronze*
Chocolate
Mocha Brown*
Charcoal*
Iron Ore*†
Black*†
Ultra-Grain® Oak Medium Finish*†
Ultra-Grain® Oak Dark Finish*†
Ultra-Grain® Oak Walnut Finish*†
Ultra-Grain® Oak Slate Finish*†
*Not available on all models; contact customer service for availability. †Additional charges apply.
All models can be painted to match your home’s exterior. Please visit http://info.garagedoors.com/lrv for paint instructions on Intellicore® insulation models.
Please Note: Actual colors may vary from sample photos. For more information, view our color disclaimer.
■ WINDOWS/TOP SECTION OPTIONS
Window grilles for easy cleaning.
Clear Short
Clear Long
ARCH1
ARCH2
REC12
REC14
Vertical Grille on ARCH1
Vertical Grille on ARCH2
SQ22
SQ24
Grille on ARCH1
Grille on ARCH2
Wrought Iron Short
Wrought Iron Long
Wrought Iron Arch
Double door designs available.
Acrylic windows require special cleaning. Never use products that contain ammonia or petroleum products to clean acrylic. View details.
■ SPECIALTY GLASS OPTIONS
Glass is available in different designs depending on door model. Options include acrylic, clear, midnight gray, frosted, seeded, obscure and rain, as well as insulated versions for a more energy efficient door.
Clear
Midnight Gray
Frosted
Seeded
Obscure
Rain
Additional charges for optional glass apply.
■ DECORATIVE HARDWARE
Attractive black powder coated handles and step plates are provided standard on garage doors to further enhance the design of the door. Optional decorative hardware, including handles, operable L-keylocks and strap hinges, is also available.
COLOR-MATCHED HARDWARE
SPADE HARDWARE COLLECTION
■ Color-matched Lift Handles (Included)
■ = Color-matched Plastic Construction
SPADE HARDWARE COLLECTION
■ Spade Lift Handles (Optional)
■ Spade Step Plate (Optional)
■ Spade Strap Hinge* (Optional)
■ = Steel Construction ■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
SPEAR HARDWARE COLLECTION
COLONIAL HARDWARE COLLECTION
SPEAR HARDWARE COLLECTION
■ Spear Lift Handles (Optional)
■ Spear Step Plate (Optional)
■ Spear Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
COLONIAL HARDWARE COLLECTION
■ Colonial Lift Handles (Optional)
■ Colonial Step Plate (Optional)
■ Colonial Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
MISCELLANEOUS HARDWARE
MISCELLANEOUS HARDWARE
■ Twisted “L” Handles (Optional)
■ Twisted “T” Handle (Optional)
■ Escutcheon Plate(s) (Optional)
■ = Cast Iron Construction
■ = Color-matched Plastic Construction ■ = Steel Construction ■ = Aluminum Construction ■ = Cast Iron Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
