GLENMOOR™ CARRIAGE HOUSE
5-LAYER CONSTRUCTION
Glenmoor™ Carriage House 5-layer construction style garage doors are constructed with our high R-value Intellicore® polyurethane steel base and finished with a faux wood composite cladding and overlay.

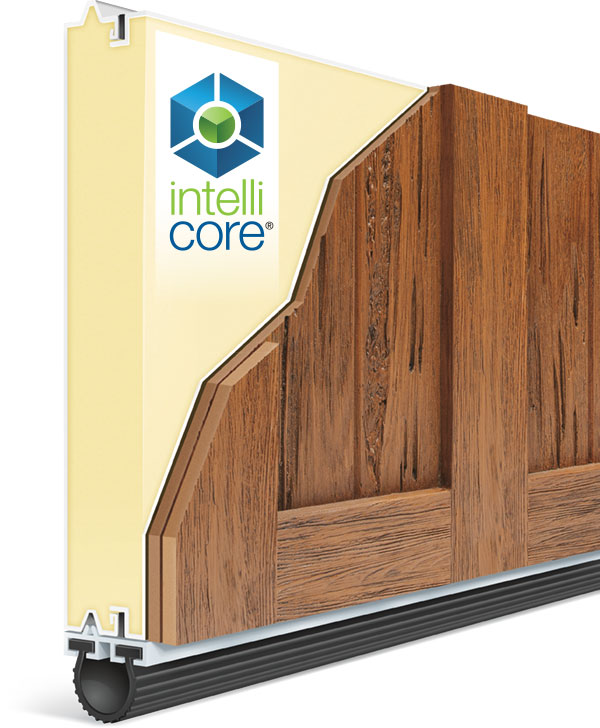

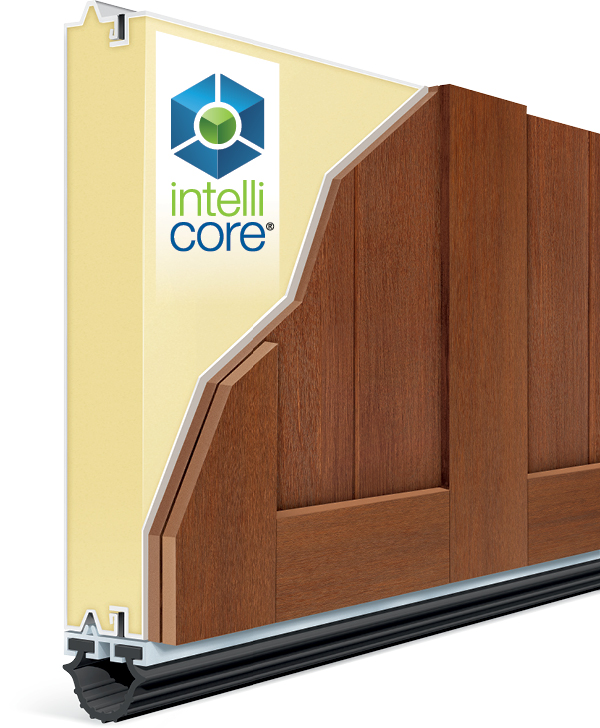

■ FIVE-LAYER CONSTRUCTION
Steel, Insulation, Steel, Cladding, Overlay
2″ Intellicore® Polyurethane Insulation
20.4 R-Value
Five-layer construction with Intellicore® polyurethane insulated, composite faux wood doors.
Swing-out appearance – modern operation.
Premium grade hardware, rollers and track assure smooth, quiet, long-lasting operation.
■ DOOR DESIGNS
SERIES 1

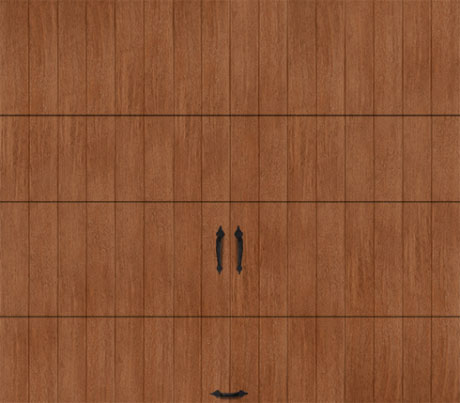

Design 01

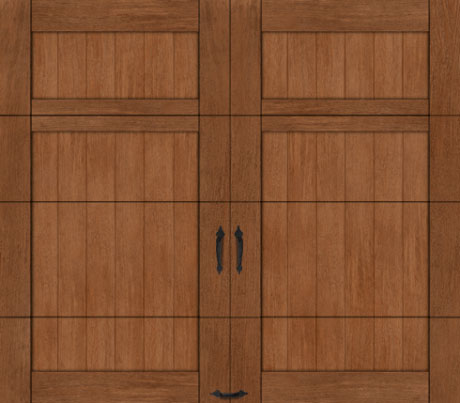

Design 11

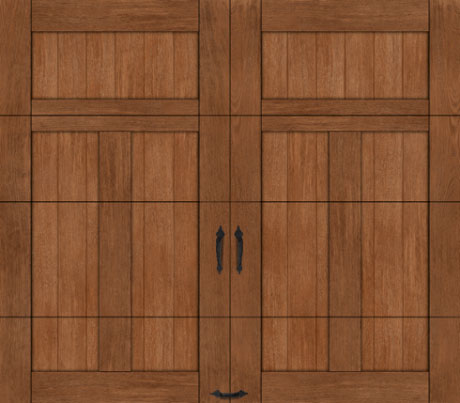

Design 12

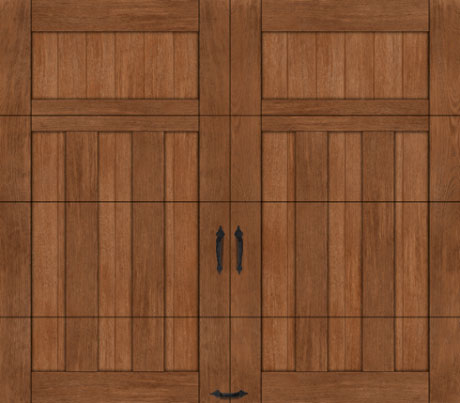

Design 13
SERIES 2

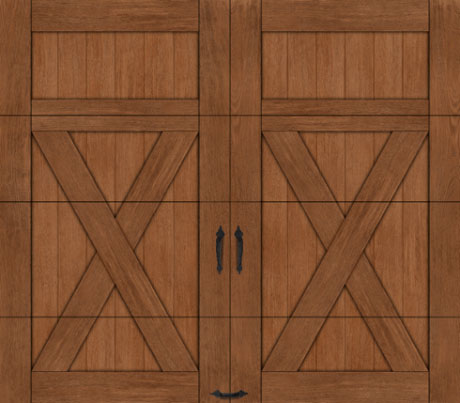

Design 21

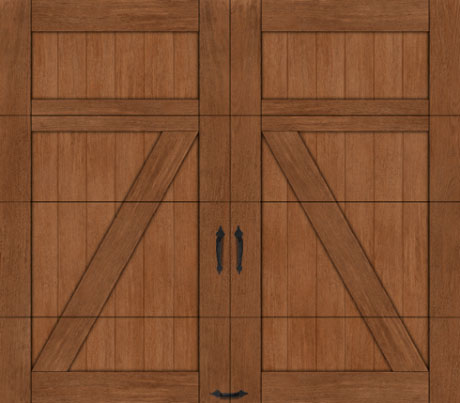

Design 22

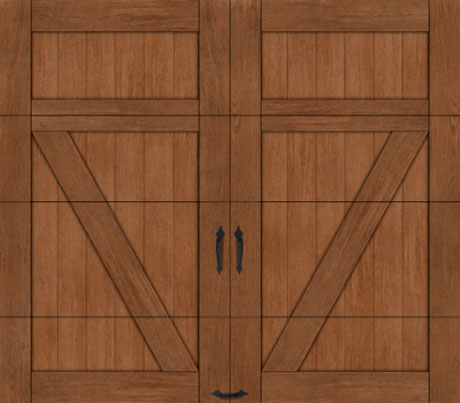

Design 23
SERIES 3

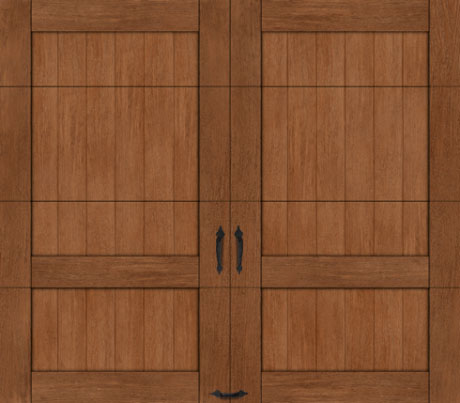

Design 31

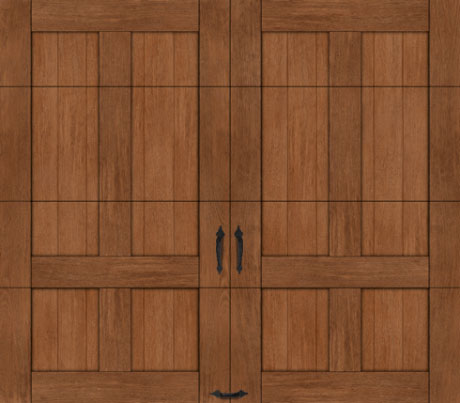

Design 32

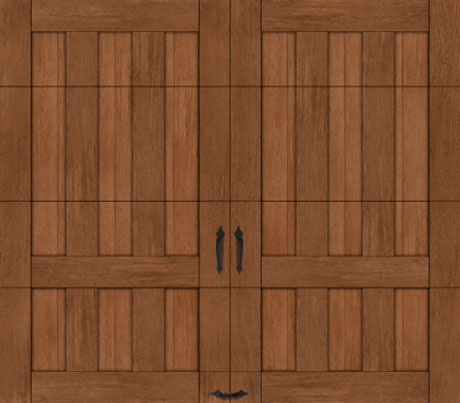

Design 33

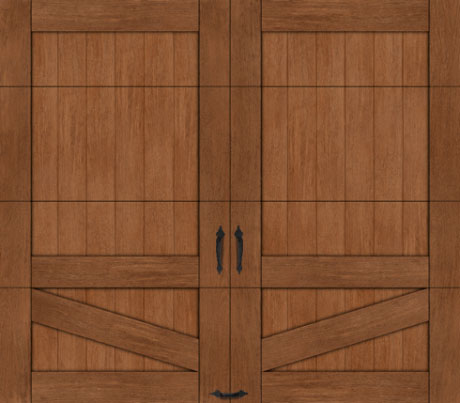

Design 34

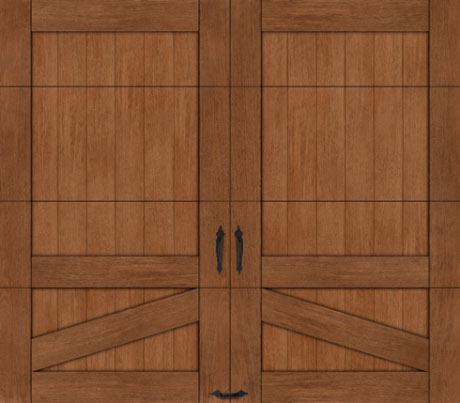

Design 35

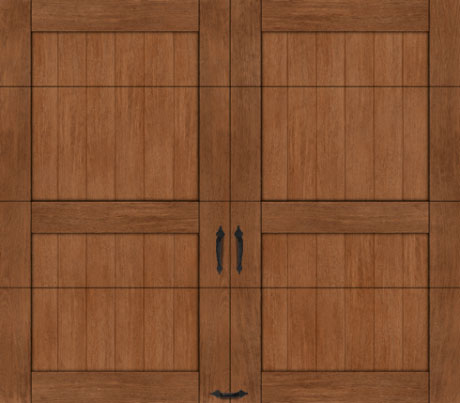

Design 36

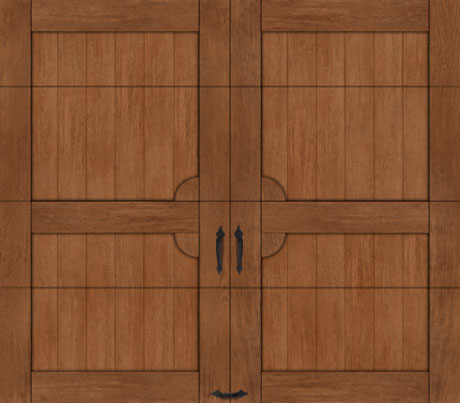

Design 37

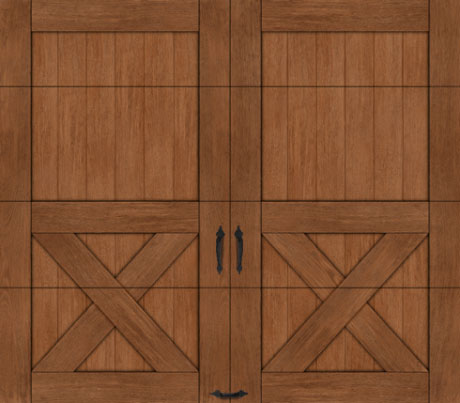

Design 38
Single door widths shown. Doors shown in Dark Finish with Clear Cypress composite cladding and Clear Cypress composite overlay.
Design 01 does not have an overlay.
■ MATERIAL DESIGN OPTIONS
Composite cladding options include Clear Cypress and Mahogany. Composite overlay options include Clear Cypress and Mahogany.
CLADDING
OVERLAY
Clear Cypress
Mahogany
OVERLAY
Clear Cypress
Mahogany
Cladding and overlay material options may be mixed and matched.
■ COLOR OPTIONS
Factory finished in Walnut, Dark, Medium, Slate, Bronze, Charcoal or Black Finish; doors can also be ordered in White Finish (Mahogany only) or primed for homeowners wishing to custom paint or stain their doors.
Natural Finish
Medium Finish
Dark Finish
Walnut Finish
Espresso Finish
Slate Finish
Bronze Finish*
Charcoal Finish*
Black Finish*
White Finish*
Primed (No Finish)
*Bronze, Charcoal, Black and White Finish available only on Mahogany cladding and overlays.
Doors can be ordered primed for those homeowners wishing to custom paint or stain their doors. Door stain color will vary slightly within a door due to finishing process.
Please Note: Actual colors may vary from sample photos. For more information, view our color disclaimer.
■ WINDOWS/TOP SECTION OPTIONS
Attractive beveled-edge, clip-in grilles are removable for easy window cleaning.

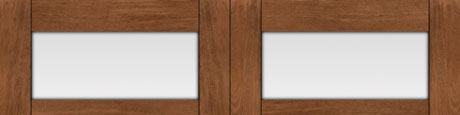

REC11

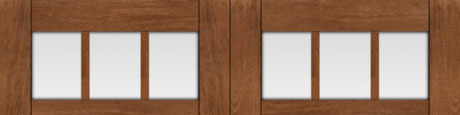

REC13
REC14
SQ23

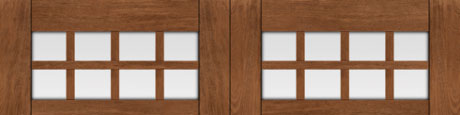

SQ24

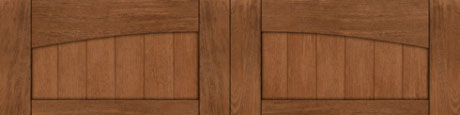

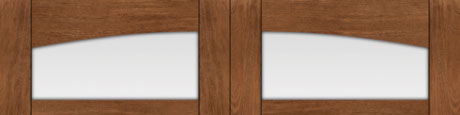

ARCH1

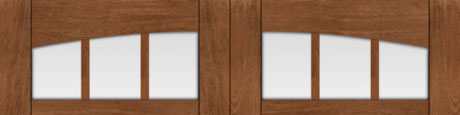

ARCH13

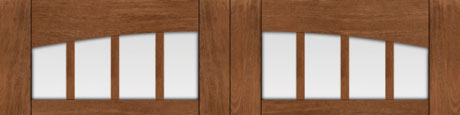

ARCH14
ARCH3

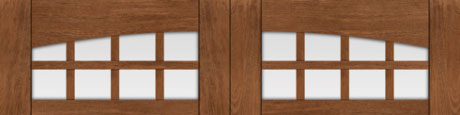

ARCH4

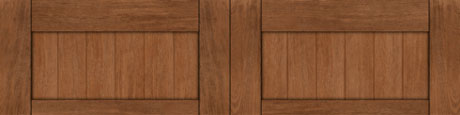

TOP11

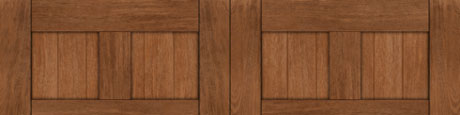

TOP12

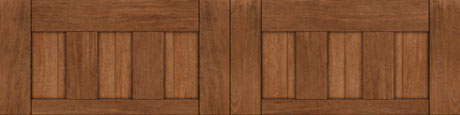

TOP13
ARCH1
Design 01 and Series 3 are not available with windows.
Double door designs available.
■ SPECIALTY GLASS OPTIONS
Glass is available in different designs depending on door model. Options include acrylic, clear, frosted, seeded, obscure and rain, as well as insulated versions for a more energy efficient door.
Clear
Frosted
Seeded
Obscure
Rain
Additional charges for optional glass apply.
■ DECORATIVE HARDWARE
Attractive black powder coated handles and step plates are provided standard on garage doors to further enhance the design of the door. Optional decorative hardware, including handles, operable L-keylocks and strap hinges, is also available.
SPADE HARDWARE COLLECTION
SPEAR HARDWARE COLLECTION
■ Spade Lift Handles (Included)
■ Spade Step Plate (Included)
■ Spade Strap Hinge* (Optional)
■ = Steel Construction ■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
SPEAR HARDWARE COLLECTION
■ Spear Lift Handles (Optional)
■ Spear Step Plate (Optional)
■ Spear Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
COLONIAL HARDWARE COLLECTION
■ Colonial Lift Handles (Optional)
■ Colonial Step Plate (Optional)
■ Colonial Strap Hinge* (Optional)
■ = Aluminum Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
MISCELLANEOUS HARDWARE
■ Twisted “L” Handles (Optional)
■ Escutcheon Plate(s) (Optional)
■ Decorative Handles with Keyhole (Optional)
■ Ring Door Knocker (Optional)
■ = Cast Iron Construction
■ = Steel Construction ■ = Aluminum Construction ■ = Cast Iron Construction
*Door may not open properly if installed near the top depending on opening dimensions and lift type.
